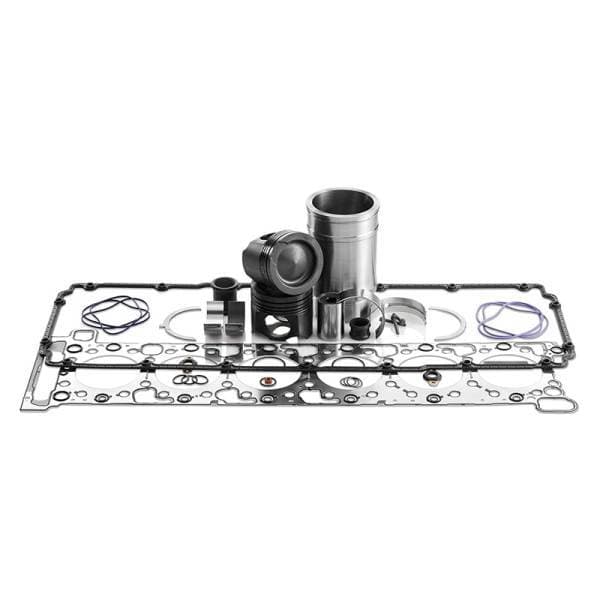

Detroit Diesel DD15 Premium Inframe Kit
This kit is a Premium Inframe Kit, meaning that it comes with many items that basic inframe rebuild kits do not. We include a complete set of head bolts, rod bolts, main cap bolts, piston cooling nozzles, etc. Please see the list below for a full breakdown of what your package will contain.
EPA07, 2007-2009 Export (Usually Australia), Euro Export IV (Usually Chile/Mexico)
EPA10, 2010-2012 Freightliner, Western Star
Fits DD15 Engines with Serial Numbers beginning with the following prefixes: 472903S, 472904S, 472905S, 472907S, 472908S - Engine Serial Number can be located on a sticker on the valve cover
EPA10 DD15 472903S 14.8 L (DD15) Freightliner
EPA10 DD15 472904S 14.8 L (DD15) Western Star
EPA10 DD15 472905S 14.8 L (DD15)
EPA07 DD15 472907S 14.8 L (DD15) Export (Usually Australia)
EPA07 DD15 472908S 14.8 L (DD15) Export Euro IV (Usually Chile/Mexico)

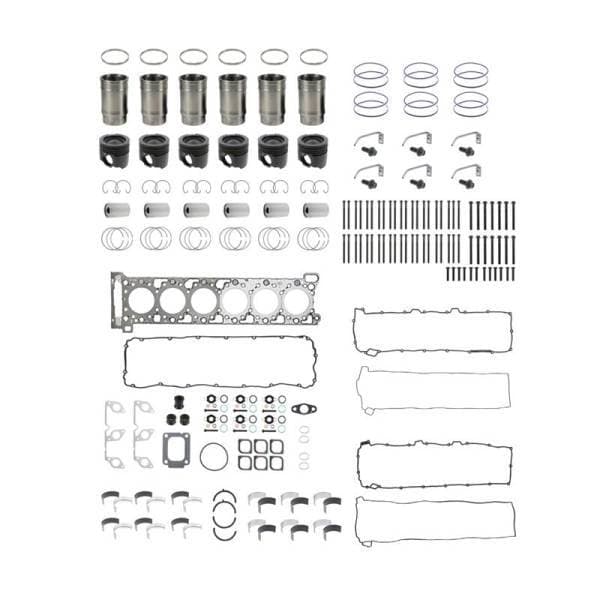

Inframe Kit Includes
(6) A4720111910 Liner Kit
(6) A4720302317 Piston Kit
(6) Piston Cooling Nozzle
(7) A4720300240 Main Bearing
(1) A4720300445 Main Thrust
(6) A4720300960 Rod Bearing
(14) Main Cap Bolt
(38) Head Bolt
(12) Connecting Rod Bolt
(1) A4720161920 Head Gasket Kit
(6) A4720160121 Valve Cover Seal
(6) Gasket, Intake
(1) Gasket, Charge Air Pipe
(1) Gasket, Exhaust Manifold
(1) Gasket, Exhaust Manifold
(1) Gasket, Turbo Mounting
(1) Washer
(1) Washer
(1) A4721400648 Connector Pipe
(2) A4722000154 Connector Pipe
Engine Model and Serial Number
The fourteen-digit engine model and manufacturing serial number is etched on a pad located on the left front of the engine cylinder block, above the date and time of manufacture.
Using 472901 S0005703 as an example:
- 472 = engine model (DD15)
- 901 = vehicle application (Freightliner)
- S = assembly plant (Detroit)
- 0005703 = serial number
Cross Reference with Part Number: DD1501-145
Reliability Backed by an Industry-Leading Warranty. All of HDP's DD15 are backed by an industry leading 2-year warranty (unlimited miles) for on-highway diesel applications. We provide cost effective OE quality parts at affordable prices that will not risk engine life or performance.

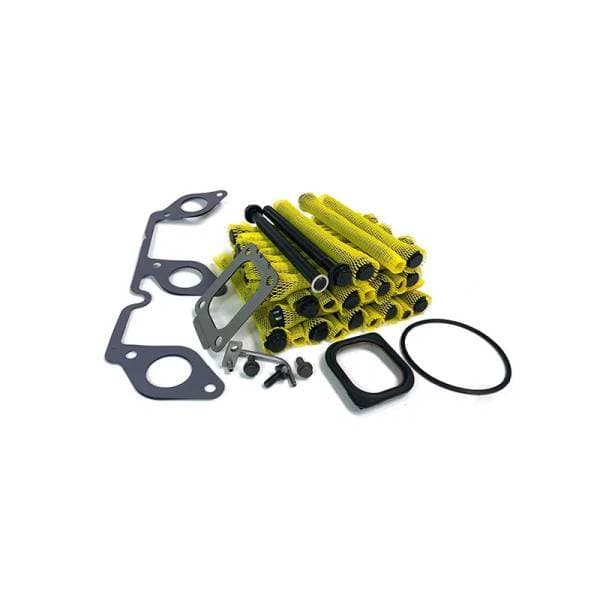

We have upgraded our DD15 in-frame kit coverage. These kits now include all of the head bolts, gaskets and fasteners needed for an engine rebuild, allowing you to replace worn and stressed components with new parts.
