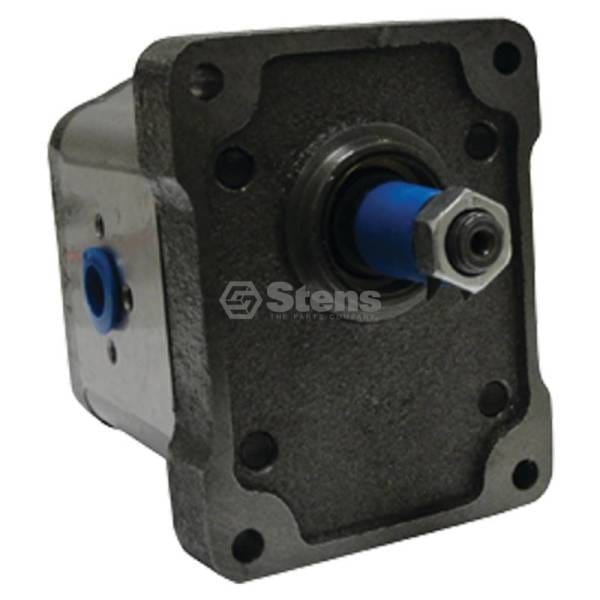

Ford New Holland Hydraulic Pump, 1101-1038

Counter clockwise rotation
The system needs be flushed and replaced with clean, new fluid

Drive Type Keyed
Max PSI 2900
Pump Type Single
Relief Valve Not Included
Volume 14.500 cc

CaseIH 5094391
Ford/New Holland 153634445, 1930055, 1930068, 320446000, 5086286, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156, 9967928, H5129483
Long 5129483, TX17199, TX17203

Case/International Harvester JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90 and JX95
Fiat 3400, 3400R, 3550, 3550AL and 3550R Laverda Combine, 100-90, 100-90DT, 1000, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 45-66, 45-66DT, 45-76V, 466, 50-66, 50-66DT, 55-56, 55-56DT, 55-66, 55-76, 55-76FDT, 55-76V, 55-76VDT, 55-86, 55-90, 566, 60-56, 60-56DT, 60-66, 60-66DT, 60-76, 60-76DT, 60-86, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 640, 65-56, 65-56DT, 65-66, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 650, 666, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66LPDT, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-86, 70-88, 70-88DT, 70-90, 70-90DT, 72-85 Crawler, 72-85M Crawler, 72-86, 72-93, 72-93DT, 72-94, 72-94DT, 750, 766, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 800, 82-86, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 850, 88-93, 88-93DT, 88-94, 88-94DT, 880, 90-90, 90-90DT and 95-55 Crawler
Ford/New Holland 3010S, 3435, 3830, 4010S, 4030 3 Cyl 92-96, 4230, 4330V, 4430, 5010S, 5530, 6530 and 7530, TK76, TK85 and TK85M Crawler
Hesston 100-90, 100-90DT, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 45-66, 45-66DT, 45-76V, 50-66DT, 55-56DT, 55-66, 55-66DT, 55-76, 55-76DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 55-90, 60-56DT, 60-66, 60-66DT, 60-76, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93DT, 60-94, 60-94DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93DT, 65-94, 65-94DT, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66LPDT, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76F, 70-76FDT, 70-76LP, 70-88DT, 70-90, 70-90DT, 72-85M, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-76, 80-76DT, 80-88DT, 80-90, 80-90DT, 82-93DT, 82-94DT, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90 and 90-90DT
Long 2360, 2460, 2510, 2610 and 680
