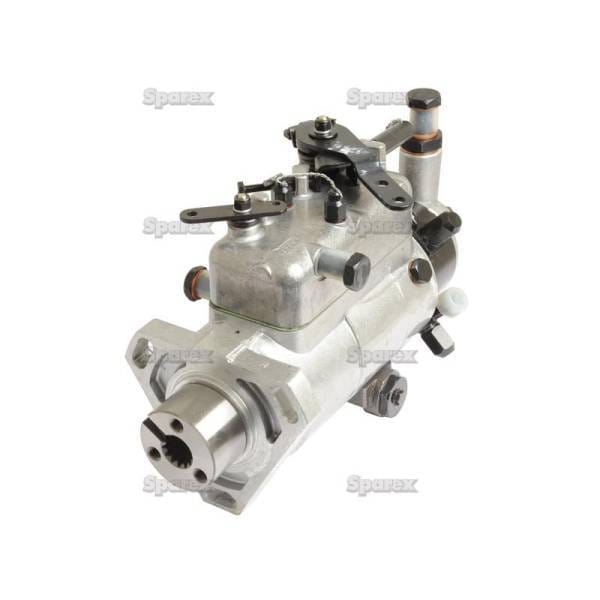

Fuel Injection Pump, S.105959

Ford Motor BSD442
Automatic advance range: -1 Degree to +9 Degree
Bar: 0.1
Classification ID: 7243
Engine Manufacturer: Ford Motor
Engine Model: BSD442
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure bar: 500
Maximum Plunger Stroke mm: 1.5
Maximum Power per Engine Cylinder kw cyl: 20
Maximum Pump Speed: 2500
Mechanical Governor: Yes
Number of plungers: 2
Number of Pumping Outlets: 4
Plunger Diameter mm: 9.5
Pump rotation: Clockwise
Temperature Range: -20 Degrees C to 79 Degrees C
Ford New Holland: 5000, 5100, 515, 5200, 531, 532, 5340, 535, 5600, 5700, 6600, 6700
CAV: CAV3849F951, 3249F951
Ford New Holland: 83900051, 87769417, D4NN9A543F
Lucas: CAV3849F951
S.70317 Ford 65: 112
