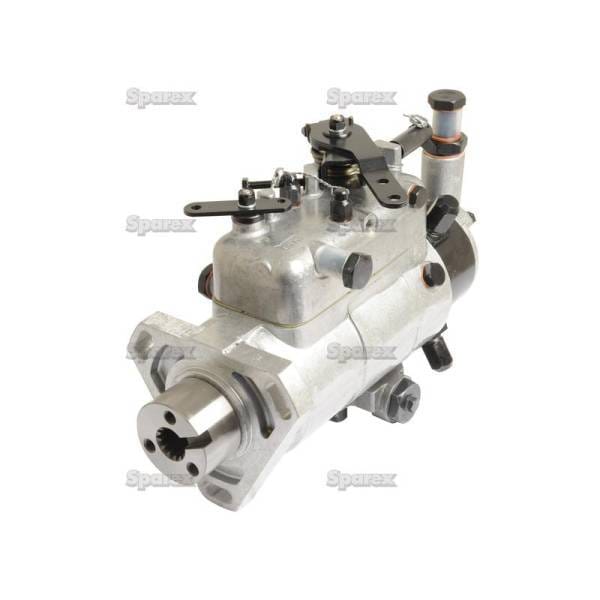

Fuel Injection Pump, S.105961

Ford Motor BSD326, BSD329
Automatic advance range: +3 Degree to +10 Degree
Bar: 0.1
Classification ID: 7243
Engine Manufacturer: Ford Motor
Engine Model: BSD326, BSD329
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure bar: 500
Maximum Plunger Stroke mm: 1.5
Maximum Power per Engine Cylinder kw cyl: 20
Maximum Pump Speed: 2500
Mechanical Governor: Yes
Number of plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter mm: 9.5
Pump rotation: Clockwise
Temperature Range: -20 Degrees C to 81 Degrees C
Ford New Holland: 2000, 2100, 2110, 2120, 2150, 2300, 230A, 231, 2310, 233, 234, 2600, 2600N, 2600V, 2610, 2610V, 2810, 2910, 3000, 3055, 3100, 3120, 3300, 3310, 333, 3330, 334, 335, 3400, 3500, 3550, 3600, 3600N, 3600V, 3610, 3610V, 3900, 3910, 3910N, 3910V, 4000, 4100, 4110, 4110N, 4110V, 4140, 420, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4600SU, 4610, 4610N, 4610SU, 4610V, 5000, 5100, 515, 5200, 530A, 531, 532, 5340, 535, 5600, 5700, 6600, 6700
CAV: CAV3833F661, 3233F661
Ford New Holland: E2NN9A543TB, E2NN9A543TA, 83954934, D6NN9A543F, 83947846
Lucas: CAV3833F661
