Perkins 403C-17, 403D-17 Engine Inframe Overhaul Rebuild Kit, HM, GS Builds

403C-17 (HM), 403D-17 (GS)Bore: 3.3 in (84.00mm)
Stroke: 3.9 in (100.00mm)Displacement: 101.4 cubic inches, 1.662L
Compression Ratio: 22.5:1Case-IH: D35 Tractor, DX34 Tractor, DX35 Tractor, Farmall 35 Tractor

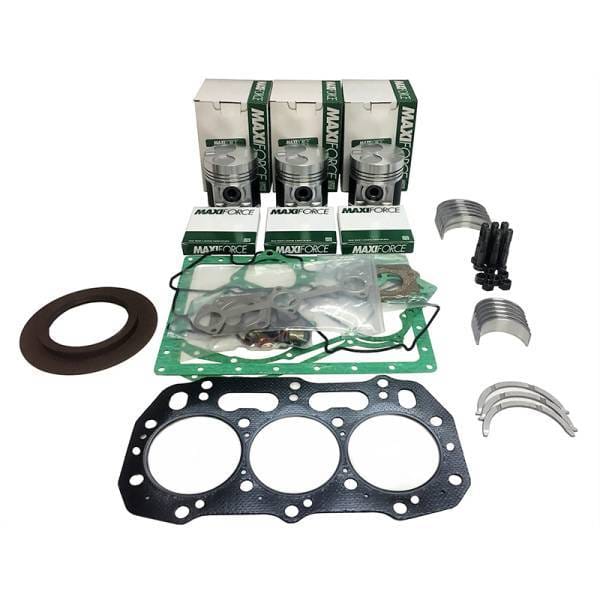

New Holland: Boomer 2035 Tractor, T1520 Tractor, T2220 Tractor, TC34DA Tractor, TC35 Tractor, TC35A Tractor, TC35D Tractor, TC35DA Tractor Basic Overhaul Kit Includes:
(3) Piston Kits (Piston, Piston Rings, Piston Pin, Pin Retainers)
(3) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set

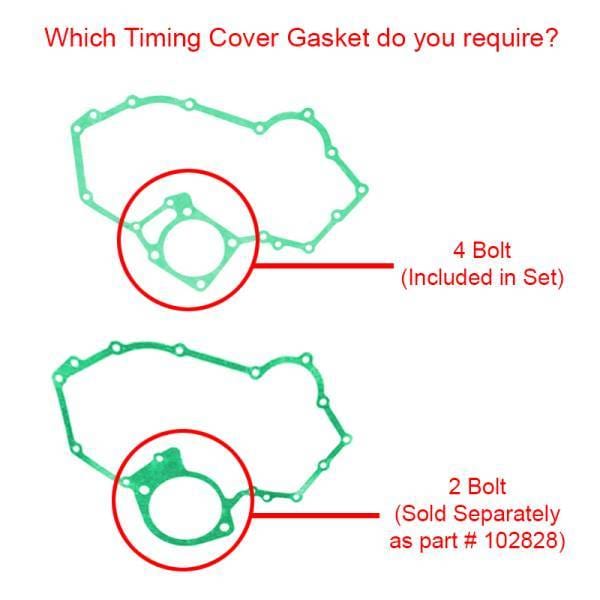

(1) Overhaul Gasket Set - Please note: If the auxiliary drive portion of your timing cover gasket uses only 2 bolts instead of 4, you will need to purchase gasket # 102828, sold separately. Depending on the serial number or production date, the TC35, TC35D, D35 & DX35 may require additional manifold gaskets not offered in PU5LC0018.
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(6) Rod Bolts
(6) Rod Nuts Premium Overhaul Kit Includes:
(3) Cylinder Kits (Liner, Piston, Piston Rings, Piston Pin, Pin Retainers)
(3) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set
(1) Overhaul Gasket Set - Please note: If the auxiliary drive portion of your timing cover gasket uses only 2 bolts instead of 4, you will need to purchase gasket # 102828, sold separately. Depending on the serial number or production date, the TC35, TC35D, D35 & DX35 may require additional manifold gaskets not offered in PU5LC0018.
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(6) Rod Bolts
(6) Rod Nuts
(3) Intake Valves
(3) Exhaust Valves
(6) Valve Springs
(12) Valve Locks
