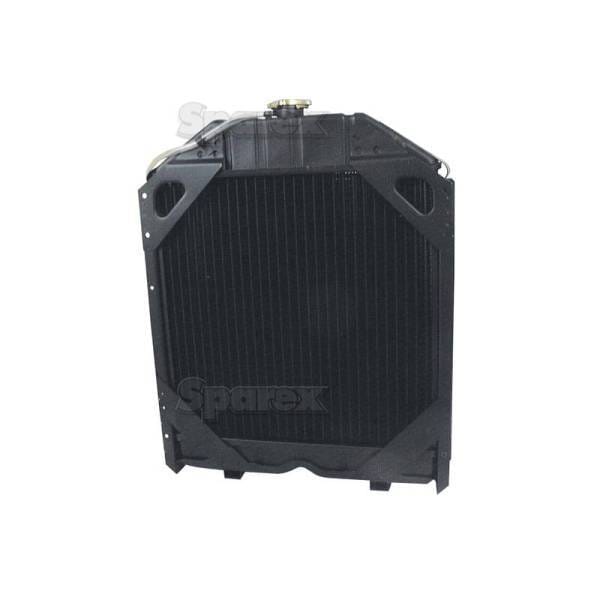

Radiator, S.62342

Overall height: 625mm, Overall width: 510mm, Thickness: 100mm, Intake: Diameter 45mm, Outlet: Diameter 38mm

A mm: 625
B mm: 510
C mm: 100
D mm: 45
E mm: 38
Intake mm: 45
Number of Coolers: 4 Row
Outlet mm: 38
Overall height mm: 625
Overall width mm: 510
Radiator Cap: S.63104
Supplied with Radiator Cap: Yes
Thickness mm: 100
With Intercooler: No

Allis Chalmers: 5040, 5045, 5050
Fiat: 450, 480, 500, 540, 550, 600, 640
Long Tractor: 2510, 2510DTE, 2510SD, 2510SD-DTC, 260C, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 320, 350, 360, 360C, 445, 445DT, 445SD, 460, 460DT, 460V, 510, 510DT, 550, 550DT, 560, 560DT, 560DTE, 610, 610C, 610DT, 610DTE
White Oliver: 1250A, 1255, 1265, 1270, 1355, 1365, 1370, 2-50, 2-60

Case IH / International Harvester: 4986634, 4973345, 4952983, 5012197
Fiat: 04956666, 4952983, 599105, 4956666, 4973345
Long Tractor: TX15073, TX10440
Universal Tractors: 595001
White Oliver: 31-2902313, 30-3010910
