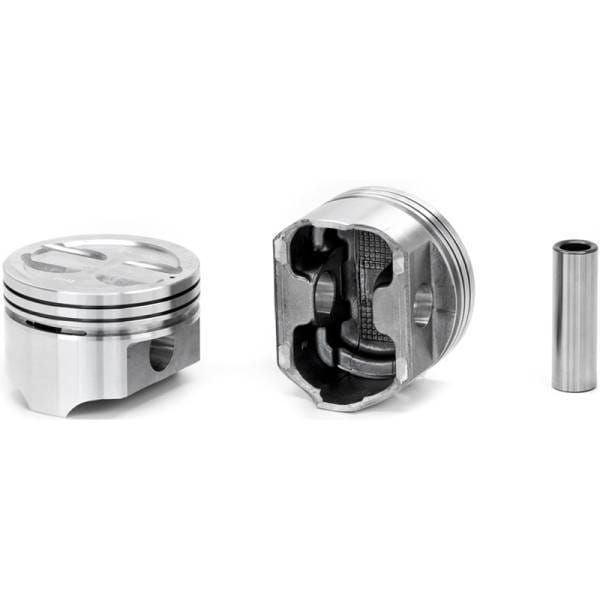

ReMan Pro Piston Set, 1470.030

Silv-O-Lite ReMan Pro Piston - Chevrolet 350ci/5.7L (V8)

3.160" diameter recess.080" deep with 4 valve reliefs. Use 1986 and earlier rings.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Chevrolet

Engine Family: Chevy Small Block Gen I

OE Cross Reference: 3991488, 6271097, 14077448, 10159424, 10049073, 12509282, 10049076, 10049079, 14094004, 12514101, 12520264

Engine Displacement (Liters): 5.7

Engine Displacement (cubic inches): 350

Piston Head Type: Dish

Crown (cc): +13cc

Compression Ratio: 7.9

Top Land: 0.245

Pin Type: Press

Top Compression Ring Thickness IN: .0781"

Piston Pin Outside Diameter MM: 23.5

Compression Height IN: 1.54

Bore Diameter MM: 101.6

Pin Configuration: Offset

Piston Pin Outside Diameter IN: 0.927

Compression Height MM: 39.1

Oil Ring Thickness IN: .1875"

Second Compression Ring Thickness IN: .0781"

Bore Diameter IN: 4

Oversizes: STD, .020, .030, .040, .060, .080

Year To: 1995

Year Range: 1971-1995

Oversized: Yes

Crown Type: DISH

Year From: 1971

Base Number: 1470

Pin Number: 0927x300A

Oversize: .030"

Ring Pack: 5/64, 5/64, 3/16

Piston Material: Cast 332 Alloy
