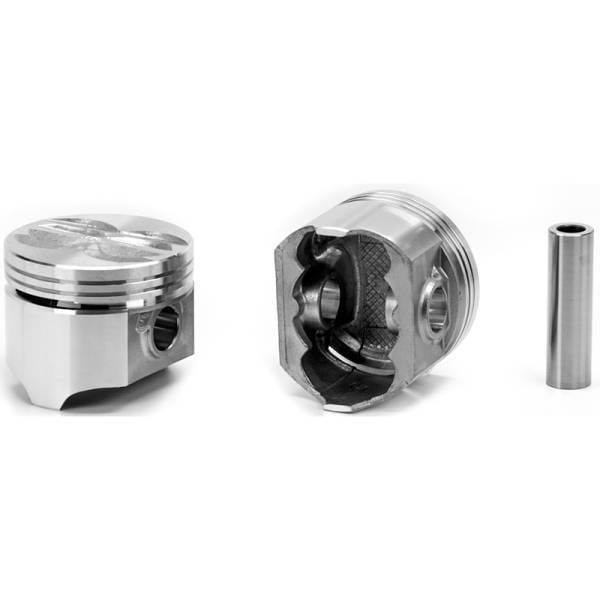

ReMan Pro Piston Set, 1526.030

Silv-O-Lite ReMan Pro Piston - Pontiac 400ci/6.6L (V8)

Flat top with 8 valve reliefs. Fits both 14 degree and 20 degree heads.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Pontiac

Engine Family: Pontiac V8

OE Cross Reference: 9788366, 9788369, 478810, 499053

Engine Displacement (Liters): 6.6

Engine Displacement (cubic inches): 400

Piston Head Type: Flat

Crown (cc): +10cc

Compression Ratio: 8.2

Top Land: 0.3

Pin Type: Press

Compression Height MM: 43.2

Compression Height IN: 1.7

Oil Ring Thickness IN: .1875"

Piston Pin Outside Diameter MM: 24.9

Bore Diameter MM: 104.6

Bore Diameter IN: 4.12

Piston Pin Outside Diameter IN: 0.98

Top Compression Ring Thickness IN: .0781"

Second Compression Ring Thickness IN: .0781"

Base Number: 1526

Oversized: Yes

Year Range: 1967-1979

Ring Pack: 5/64, 5/64, 3/16

Oversizes: STD, .020, .030, .040, .060

Piston Material: Cast 332 Alloy

Pin Number: 0980x308A

Pin Configuration: Offset

Crown Type: FLAT TOP

Year From: 1967

Year To: 1979

Oversize: .030"
