3 Cylinder, Tier 1 & Tier 2
Bore: 3.3 in / 84.00 mm
Stroke: 3.9 in / 100.00 mm
Displacement: 101.4 cubic inch, 1.662 liter
Compression Ratio: 22.5:1
BOOMER: 2035 Tractor
CASE-IH: D35 Tractor, DX34 Tractor, DX35 Tractor, Farmall 35 Tractor
NEW HOLLAND: T1520 Tractor, T2220 Tractor, TC34DA Tractor, TC35 Tractor, TC35A Tractor, TC35D Tractor, TC35DA Tractor

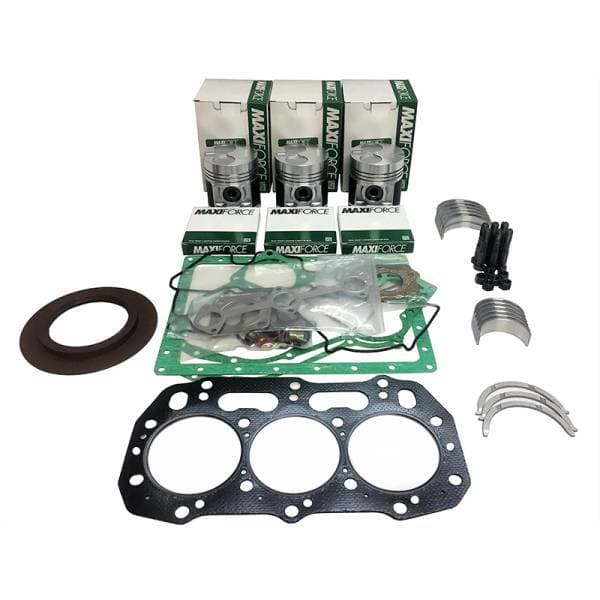

Basic Overhaul Kit Includes:
(3) Piston Kits (Piston, Piston Rings, Piston Pin, Pin Retainers)
(3) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set

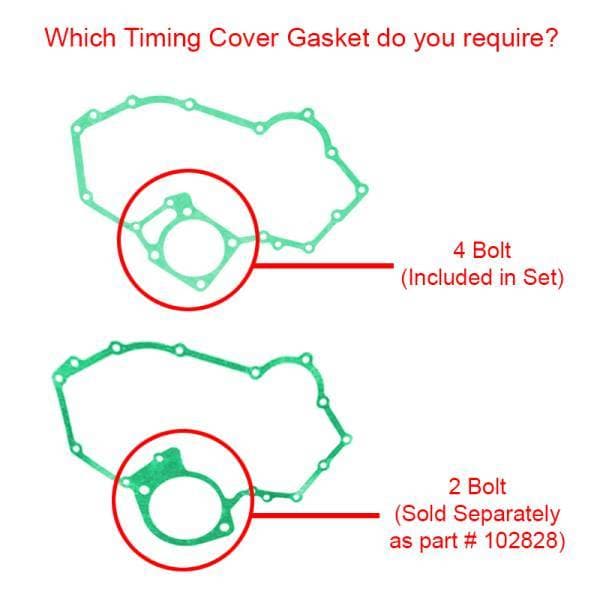

(1) Overhaul Gasket Set - Please note: If the auxiliary drive portion of your timing cover gasket uses only 2 bolts instead of 4, you will need to purchase gasket # 102828, sold separately.
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(6) Rod Bolts
(6) Rod Nuts
(3) Piston Pin Bushings
Premium Overhaul Kit Includes:
(3) Piston Kits (Piston, Piston Rings, Piston Pin, Pin Retainers)
(3) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set
(1) Overhaul Gasket Set - Please note: If the auxiliary drive portion of your timing cover gasket uses only 2 bolts instead of 4, you will need to purchase gasket # 102828, sold separately.
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(6) Rod Bolts
(6) Rod Nuts
(3) Piston Pin Bushings
(3) Intake Valves
(3) Exhaust Valves
(6) Valve Springs
