4 Cylinder, Tier 1 & Tier 2
Please note: Before ordering, please ensure that your engine is a Tier 1 or 2, as the head gasket thickness will change. It is not compatible with Tier 3 or 4 engines.
For reference:
Tier 1 or 2 uses a 0.4mm thick head gasket (Part number 101993). Tier 3 or 4 will have a 1.3mm thick head gasket (Part number 101991).
Bore: 3.3 in / 84.00 mm
Stroke: 3.9 in / 100.00 mm
Displacement: 135 cubic inch, 2.216 liter
Compression Ratio: 23.3:1
Fits Applications:
CASE-IH: 420 Skid Steer, 420CT Skid Steer, DX55 Tractor, SV185 Skid Steer, SR160 Skid Steer
NEW HOLLAND: C175 Skid Steer, L170 Skid Steer, L175 Skid Steer, L215 Skid Steer, L216 Skid Steer, L218 Skid Steer, L220 Skid Steer, LS175 Skid Steer, TC55DA Tractor

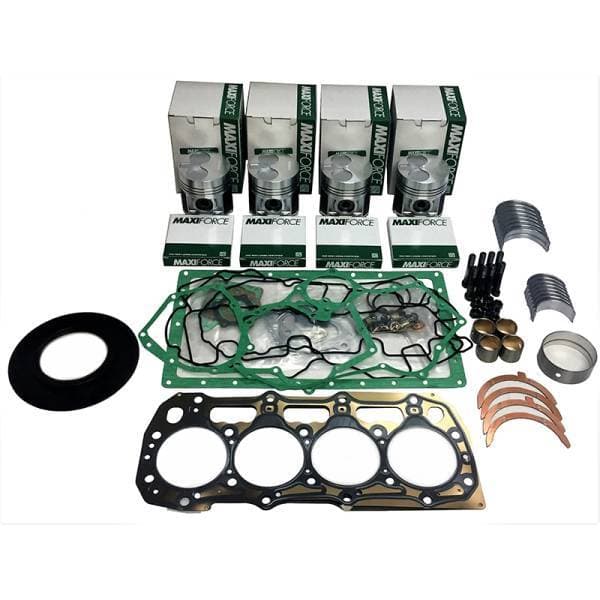

Basic Overhaul Kit Includes:
(4) Piston Kits (Piston, Piston Rings, Piston Pin, Pin Retainers)
(4) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set
(1) Overhaul Gasket Set
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(8) Rod Bolts
(8) Rod Nuts
(4) Piston Pin Bushings
Premium Overhaul Kit Includes:
(4) Piston Kits (Piston, Piston Rings, Piston Pin, Pin Retainers)
(4) Rod Bearing Pairs
(1) Main Bearing Set
(1) Thrust Washer Set
(1) Overhaul Gasket Set
(1) Front Crankshaft Seal
(1) Rear Crankshaft Seal
(8) Rod Bolts
(8) Rod Nuts
(4) Piston Pin Bushings
(4) Intake Valves
(4) Exhaust Valves
(8) Valve Springs
