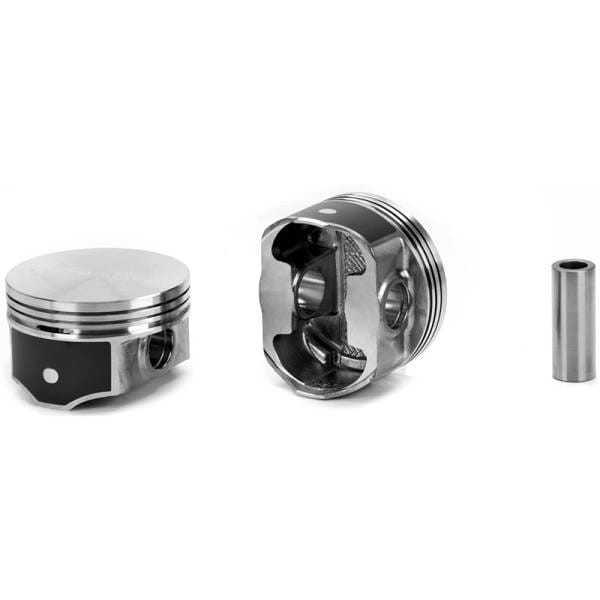

Silvolite Piston & Ring Set, 3520HC.25MM
SKU: 809575
Contact for Pricing
This build is made to order. Reach out for a quote and current lead time.
Description
Silv-O-Lite Piston - Chevrolet 325ci/5.3L (V8)
Hypereutectic flat top. High output Flex Fuel. Coated skirts. Floating pin. LS4, LM4, L33, LH8, LH6, LMG, LY5.
Sold As: Sold as a set, priced per set
Engine Manufacturer: Chevrolet
Engine Family: Chevy Small Block Gen III/IV (LS-Based Engines)
VIN Code: V, C, K, B, M, J, 0, 3, C
OE Cross Reference: 89017577
Engine Displacement (Liters): 5.3
Engine Displacement (cubic inches): 325
Piston Head Type: Flat
Compression Ratio: 9.45, 9.9
Top Land: 0.216
Pin Type: Floating
Bore Diameter MM: 96
Ring Pack: 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
Piston Pin Outside Diameter MM: 23.95
Second Compression Ring Thickness MM: 1.5
Piston Pin Outside Diameter IN: 0.943
Oil Ring Thickness MM: 3
Piston Material: Cast 390 Hypereutectic Alloy
Bore Diameter IN: 3.78
Compression Height IN: 1.323
Compression Height MM: 33.6
Top Compression Ring Thickness MM: 1.5
Oversizes: STD.25mm.5mm.75mm 1.0mm
Crown Type: FLAT TOP
Year From: 1999
Year To: 2009
Lock: SRW-012
Pin Number: 0943x223A
Pin Configuration: Offset
Base Number: 3520HC
Year Range: 1999-2009
Oversize: .25mm
Oversized: Yes
