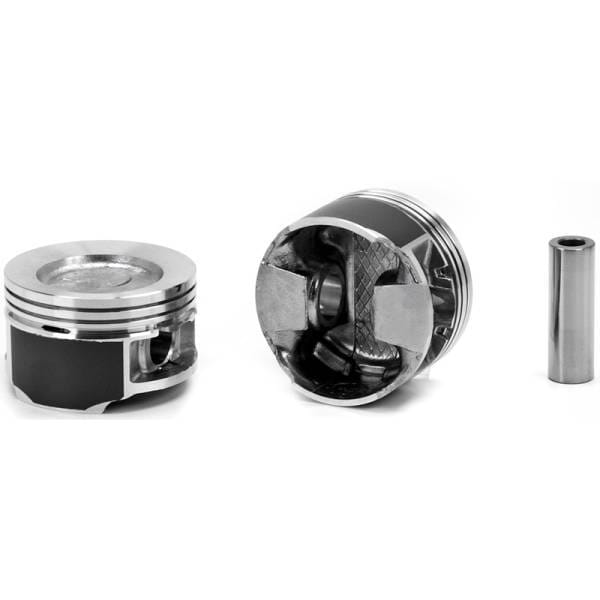

Silvolite Piston Set, 1537HC.1.0MM

Silv-O-Lite Piston - Pontiac 122ci/2.0L (L4)

Hypereutectic. 2.230" diameter offset head recess.190" deep. Non-turbo. Coated skirts.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Pontiac

Engine Family: Pontiac Inline 4-Cylinder

VIN Code: H

OE Cross Reference: 52269890

Engine Displacement (Liters): 2

Engine Displacement (cubic inches): 121

Piston Head Type: Dish

Crown (cc): +11.1cc

Compression Ratio: 9.2

Top Land: 0.197

Pin Type: Press

Compression Height MM: 29.7

Oil Ring Thickness MM: 3

Year From: 1992

Bore Diameter IN: 3.3858

Second Compression Ring Thickness MM: 1.5

Piston Pin Outside Diameter IN: 0.827

Top Compression Ring Thickness MM: 1.5

Bore Diameter MM: 86

Compression Height IN: 1.171

Piston Pin Outside Diameter MM: 21

Oversized: Yes

Oversize: 1.0mm

Year To: 1994

Pin Number: 0827x216K

Ring Pack: 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove

Base Number: 1537HC

Crown Type: DISH

Piston Material: Cast 390 Hypereutectic Alloy

Oversizes: STD 0.5mm.75mm 1.0mm

Year Range: 1992-1994

Pin Configuration: Offset
