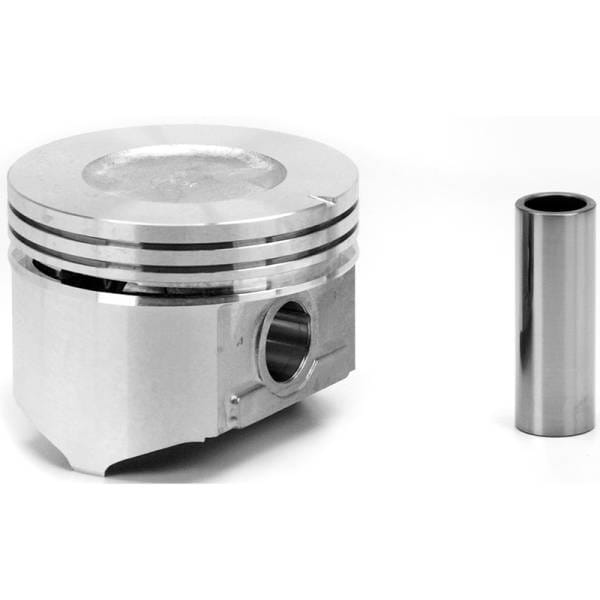

Silvolite Piston Set, 1817.040

Silv-O-Lite Piston - Cadillac 500ci/8.2L (V8)

2.500" diameter recess.110" deep.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Cadillac

Engine Family: Cadillac V8

OE Cross Reference: 3633913, 3633951

Engine Displacement (Liters): 8.2

Engine Displacement (cubic inches): 500

Piston Head Type: Dish

Crown (cc): +9.5cc

Compression Ratio: 8.1

Top Land: 0.25

Pin Type: Press

Second Compression Ring Thickness IN: .0781"

Oil Ring Thickness IN: .1875"

Top Compression Ring Thickness IN: .0781"

Compression Height IN: 1.882

Compression Height MM: 47.8

Bore Diameter MM: 109.2

Bore Diameter IN: 4.3

Year To: 1976

Piston Pin Outside Diameter IN: 1

Year From: 1974

Piston Pin Outside Diameter MM: 25.4

Pin Number: 1000x302A

Piston Material: Cast 332 Alloy

Oversized: Yes

Oversizes: STD, .020, .030, .040, .060

Crown Type: DISH

Pin Configuration: Offset

Base Number: 1817

Oversize: .040"

Ring Pack: 5/64, 5/64, 3/16

Year Range: 1974-1976
