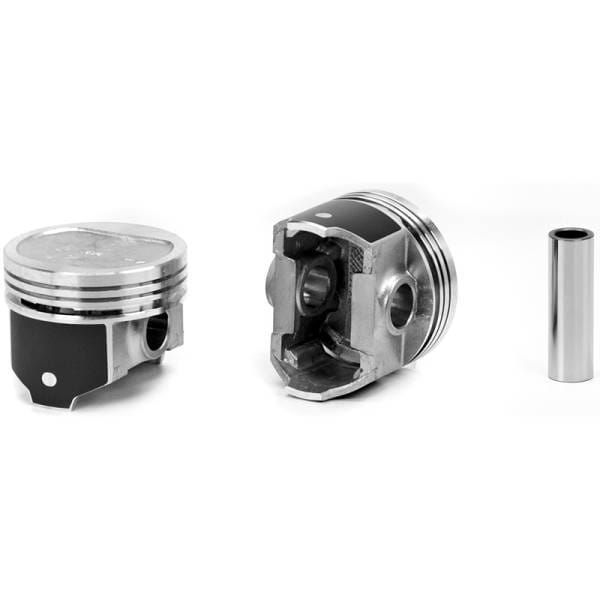

Silvolite Piston Set, 2228C.060

Silv-O-Lite Piston - AMC 153ci/2.5L (L4)

D shaped recess.100 deep. * Same as 2228 with coated skirts.

Sold As: Sold as a set, priced per set

Engine Manufacturer: AMC

Engine Family: AMC 4-Cylinder

VIN Code: U

OE Cross Reference: 8983500251

Engine Displacement (Liters): 2.5

Engine Displacement (cubic inches): 151

Piston Head Type: Dish

Crown (cc): +11.5cc

Compression Ratio: 9.2

Top Land: 0.3

Pin Type: Press

Second Compression Ring Thickness IN: .0781"

Compression Height IN: 1.581

Base Number: 2228C

Compression Height MM: 40.2

Bore Diameter IN: 3.875

Bore Diameter MM: 98.4

Piston Pin Outside Diameter MM: 23.6

Oil Ring Thickness IN: .1875"

Piston Pin Outside Diameter IN: 0.931

Top Compression Ring Thickness IN: .0781"

Oversized: Yes

Piston Material: Cast 332 Alloy

Oversizes: STD, .010, .020, .030, .040, .060

Pin Configuration: Offset

Year From: 1983

Year Range: 1983-1995

Oversize: .060"

Pin Number: 0931x306A

Year To: 1995

Crown Type: DISH

Ring Pack: 5/64, 5/64, 3/16
