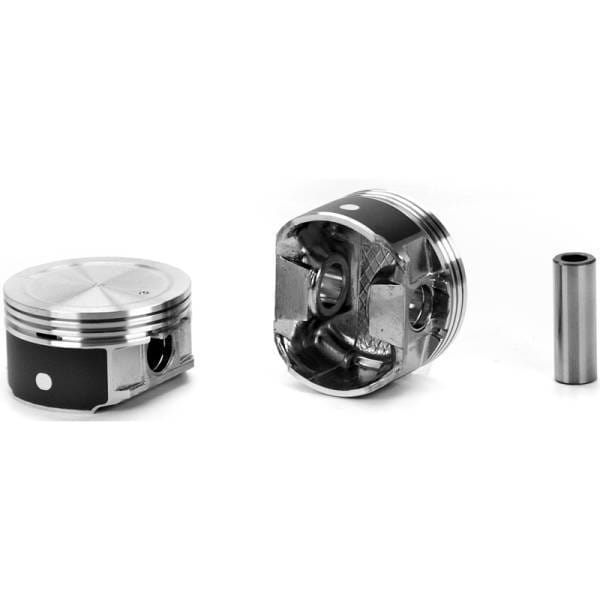

Silvolite Piston Set, 3495HC.5MM

Silv-O-Lite Piston - ECOTEC 134.2ci/2.2L (L4)

Hypereutectic. 2.750 diameter recess.025 deep. Coated skirts. Floating pin. VUE, ION.

Sold As: Sold as a set, priced per set

Engine Manufacturer: ECOTEC

Engine Family: GM L4

VIN Code: 6, F

OE Cross Reference: 12591087

Engine Displacement (Liters): 2.2

Engine Displacement (cubic inches): 134

Piston Head Type: Dish

Crown (cc): +2.3cc

Compression Ratio: 9.4

Top Land: 0.135

Pin Type: Floating

Piston Pin Outside Diameter MM: 20

Piston Pin Outside Diameter IN: 0.787

Second Compression Ring Thickness MM: 1.5

Compression Height MM: 26.5

Oil Ring Thickness MM: 2.5

Bore Diameter IN: 3.385

Top Compression Ring Thickness MM: 1.2

Bore Diameter MM: 86

Compression Height IN: 1.044

Oversize: .50mm

Piston Material: Cast 390 Hypereutectic Alloy

Lock: SRW-013

Oversized: Yes

Year To: 2006

Year Range: 2002-2006

Year From: 2002

Pin Configuration: Offset

Pin Number: 0787x211A

Oversizes: STD.5mm.75mm 1.0mm

Ring Pack: 1.2mm, 1.5mm, 2.5mm

Crown Type: DISH

Base Number: 3495HC
