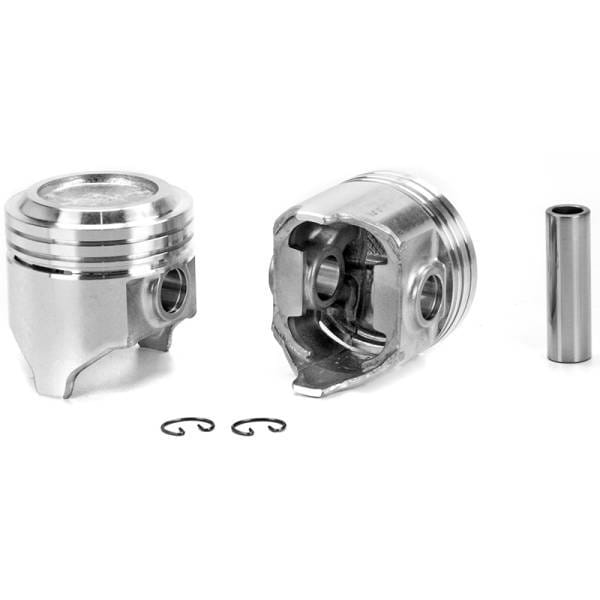

Silvolite Piston Set, 9053.5MM

Silv-O-Lite Piston - Toyota 146.4ci/2.4L (L4)

22R engine. Dome.254 high with 2.300 diameter head recess.200 deep.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Toyota

Engine Family: Toyota 4-Cylinder

OE Cross Reference: 13101-35010, 13101-35020

Engine Displacement (Liters): 2.4

Engine Displacement (cubic inches): 144

Piston Head Type: Dome

Crown (cc): +14.5cc

Compression Ratio: 9

Top Land: 0.234

Pin Type: Floating

Bore Diameter IN: 3.622

Compression Height MM: 38.7

Top Compression Ring Thickness MM: 2

Oil Ring Thickness MM: 4

Piston Pin Outside Diameter MM: 22

Second Compression Ring Thickness MM: 2.5

Compression Height IN: 1.526

Oversizes: STD.5mm.75mm 1.0mm 1.5mm

Piston Pin Outside Diameter IN: 0.866

Bore Diameter MM: 92

Oversize: .50mm

Lock: 62A

Oversized: Yes

Year Range: 1981-1984

Base Number: 9053

Piston Material: Cast 332 Alloy

Pin Number: 0866x231A

Ring Pack: 2.0mm, 2.5mm, 4.0mm

Pin Configuration: Offset

Crown Type: DOME

Year To: 1984

Year From: 1981
