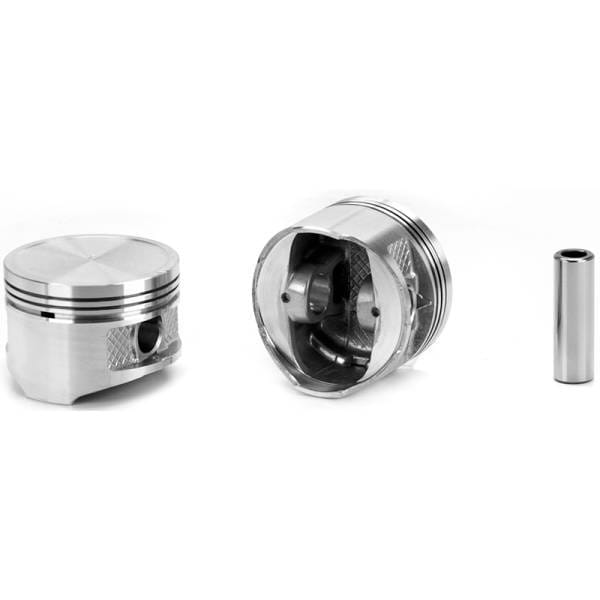

Silvolite Piston Set, 9116.5MM

Silv-O-Lite Piston - Nissan 146.4ci/2.4L (L4)

KA24E engine. SOHC. 3.110 diameter recess.025 deep. Press fit pin. For truck application.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Nissan

Engine Family: Nissan Inline 4-Cylinder

OE Cross Reference: 12010-86G20

Engine Displacement (Liters): 2.4

Engine Displacement (cubic inches): 146

Piston Head Type: Dish

Crown (cc): +3cc

Compression Ratio: 8.3

Top Land: 0.267

Pin Type: Press

Compression Height IN: 1.327

Oversized: Yes

Second Compression Ring Thickness MM: 1.5

Bore Diameter IN: 3.5039

Year From: 1989

Top Compression Ring Thickness MM: 1.5

Bore Diameter MM: 89

Oil Ring Thickness MM: 2.8

Piston Pin Outside Diameter IN: 0.827

Piston Pin Outside Diameter MM: 21

Compression Height MM: 33.7

Year To: 1997

Oversizes: STD.5mm.75mm 1.0mm

Oversize: .50mm

Year Range: 1989-1997

Piston Material: Cast 332 Alloy

Pin Configuration: Offset

Pin Number: 0826x220A

Ring Pack: 1.5mm, 1.5mm, 2.8mm

Base Number: 9116

Crown Type: DISH
