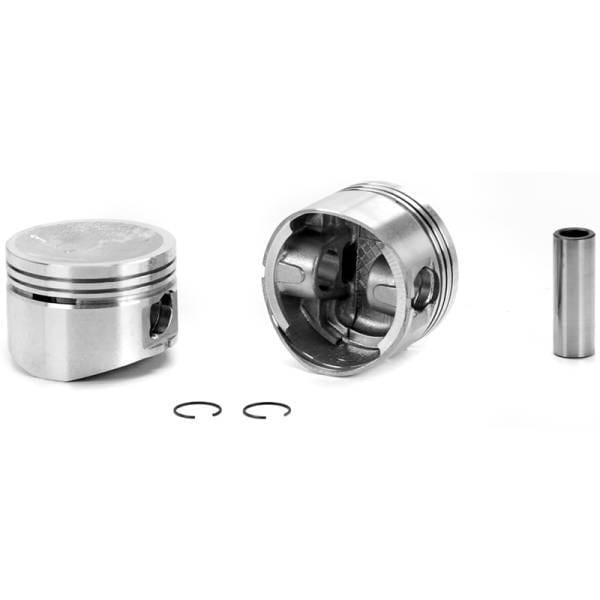

Silvolite Piston Set, 9126.75MM

Silv-O-Lite Piston - Nissan 98ci/1.6L (L4)

GA16DE engine. DOHC & F.I. 2.550diameter recess.190 deep. Full floating pin.

Sold As: Sold as a set, priced per set

Engine Manufacturer: Nissan

Engine Family: Nissan Inline 4-Cylinder

OE Cross Reference: A2010-57Y00

Engine Displacement (Liters): 1.6

Engine Displacement (cubic inches): 98

Piston Head Type: Dish

Crown (cc): +8cc

Compression Ratio: 9.5

Top Land: 0.228

Pin Type: Floating

Oil Ring Thickness MM: 2.8

Oversizes: STD.5mm.75mm 1.0mm

Compression Height MM: 28.9

Top Compression Ring Thickness MM: 1.5

Bore Diameter IN: 2.9921

Piston Pin Outside Diameter MM: 19

Bore Diameter MM: 76

Compression Height IN: 1.14

Piston Pin Outside Diameter IN: 0.749

Second Compression Ring Thickness MM: 1.5

Ring Pack: 1.5mm, 1.5mm, 2.8mm

Year From: 1989

Oversized: Yes

Pin Configuration: Offset

Pin Number: 0748x306A

Base Number: 9126

Year Range: 1989-1994

Oversize: .75mm

Year To: 1994

Piston Material: Cast 332 Alloy

Crown Type: DISH
